Vza Mining Concentration Table 3 Layers Vza-Sm03

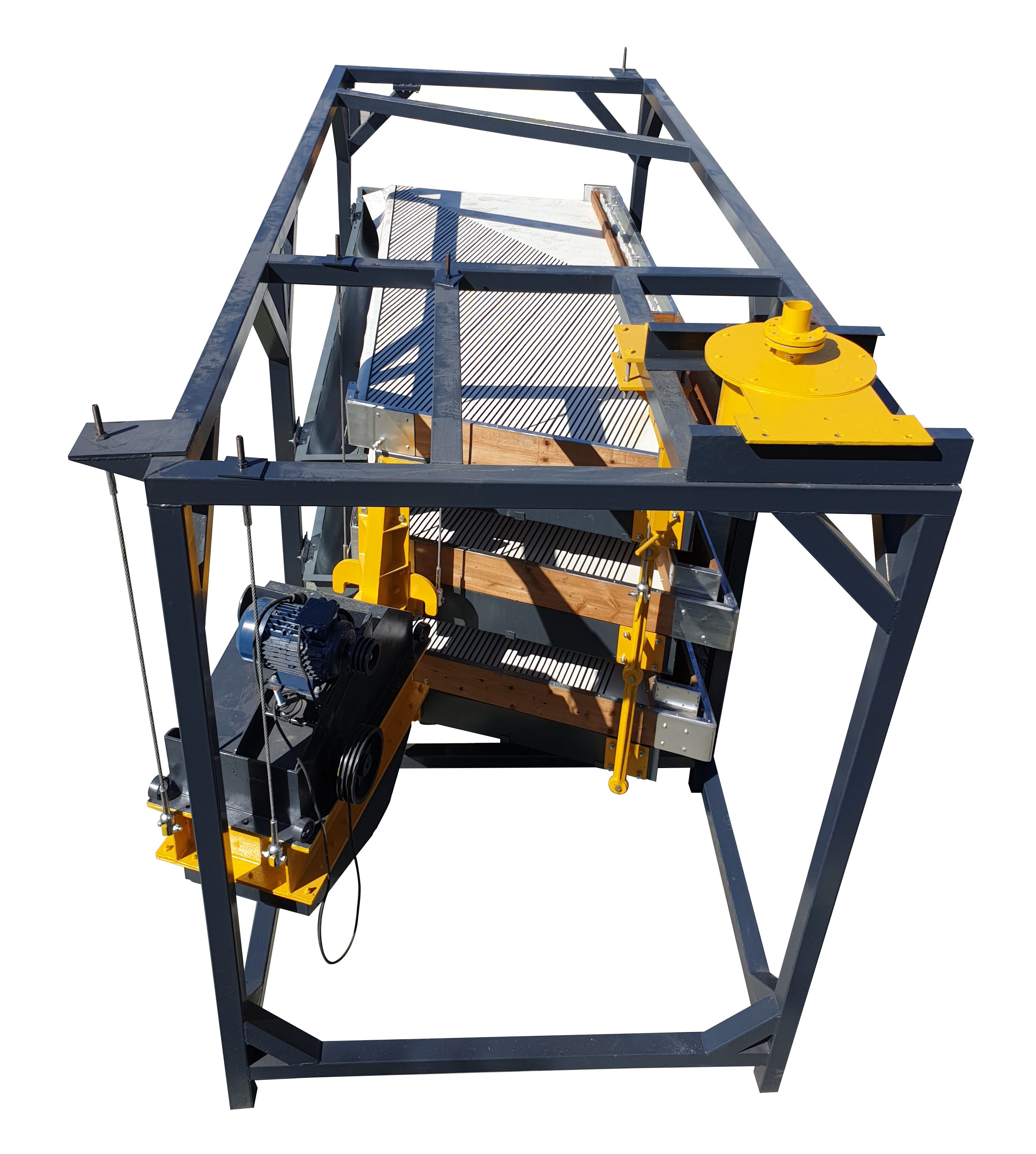

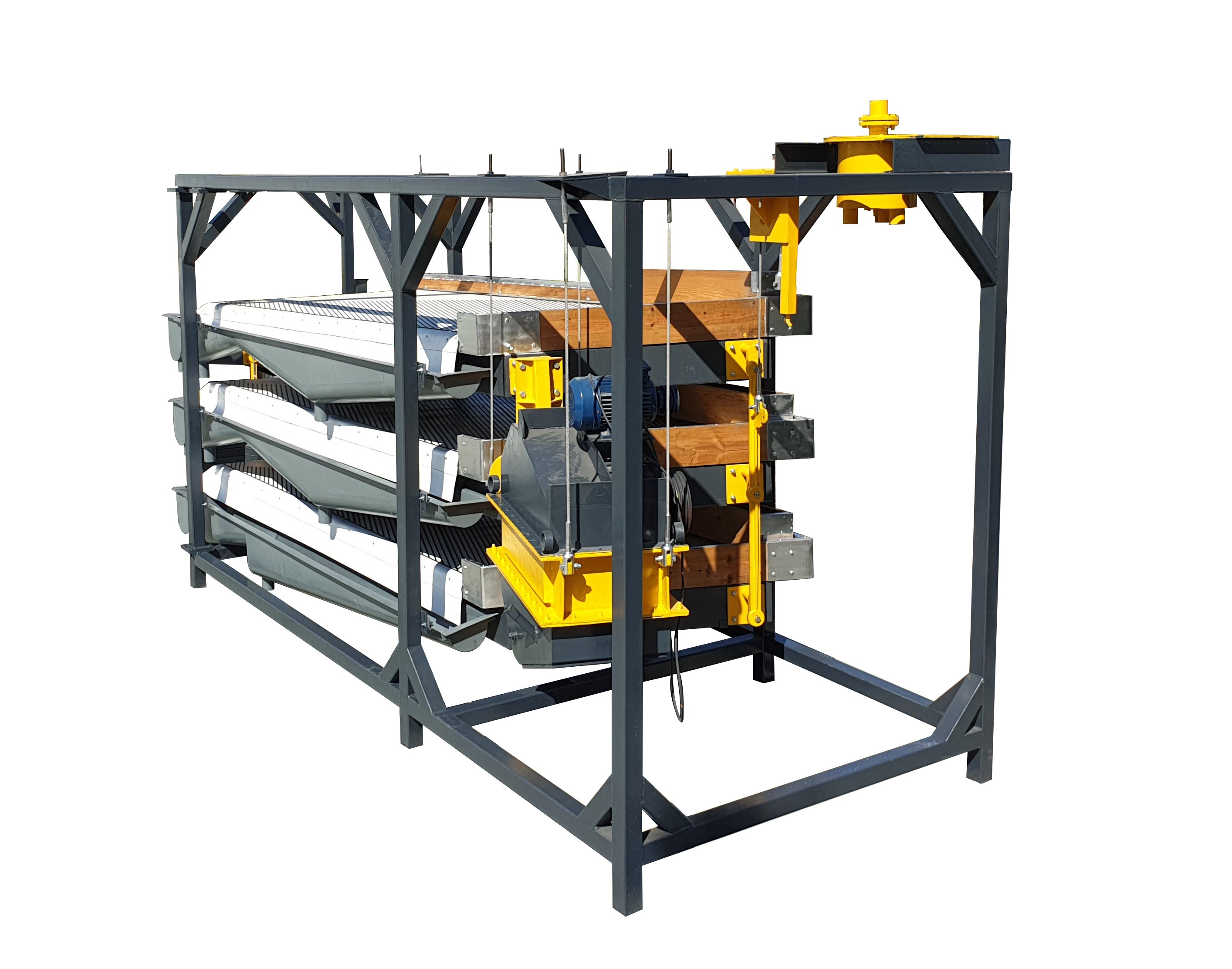

VZA-SM03 3 Layer The Concentrate Table is a vibrating concentrate machine designed for chrome miners and industrial professionals. With its single gearbox that shakes three levels simultaneously and a total enrichment area of 25.5 m², it separates the ore by taking advantage of the difference in density, increasing efficiency.
General Features
The design system of the table, which is mounted in an inclined position, is based on separating the ores from each other with the help of water, by taking advantage of the differences in density.
The main supporting body is a steel structure made of U-profiles. It has a second steel structure made of box profiles on top. The sorting surfaces of the tables are fiberglass.
These sorting tables, designed by DEISTER, were previously made of membrane material covered with rubber strips over a wooden structure. For the last few years, all developed countries have been using fiberglass surfaces on steel structures instead of wood and membrane. The tables we produce also have the same features.
Fiberglass surfaces are very resistant to wear and have a flawless surface. This allows the material to slide more easily across the surface and minimizes losses during separation.

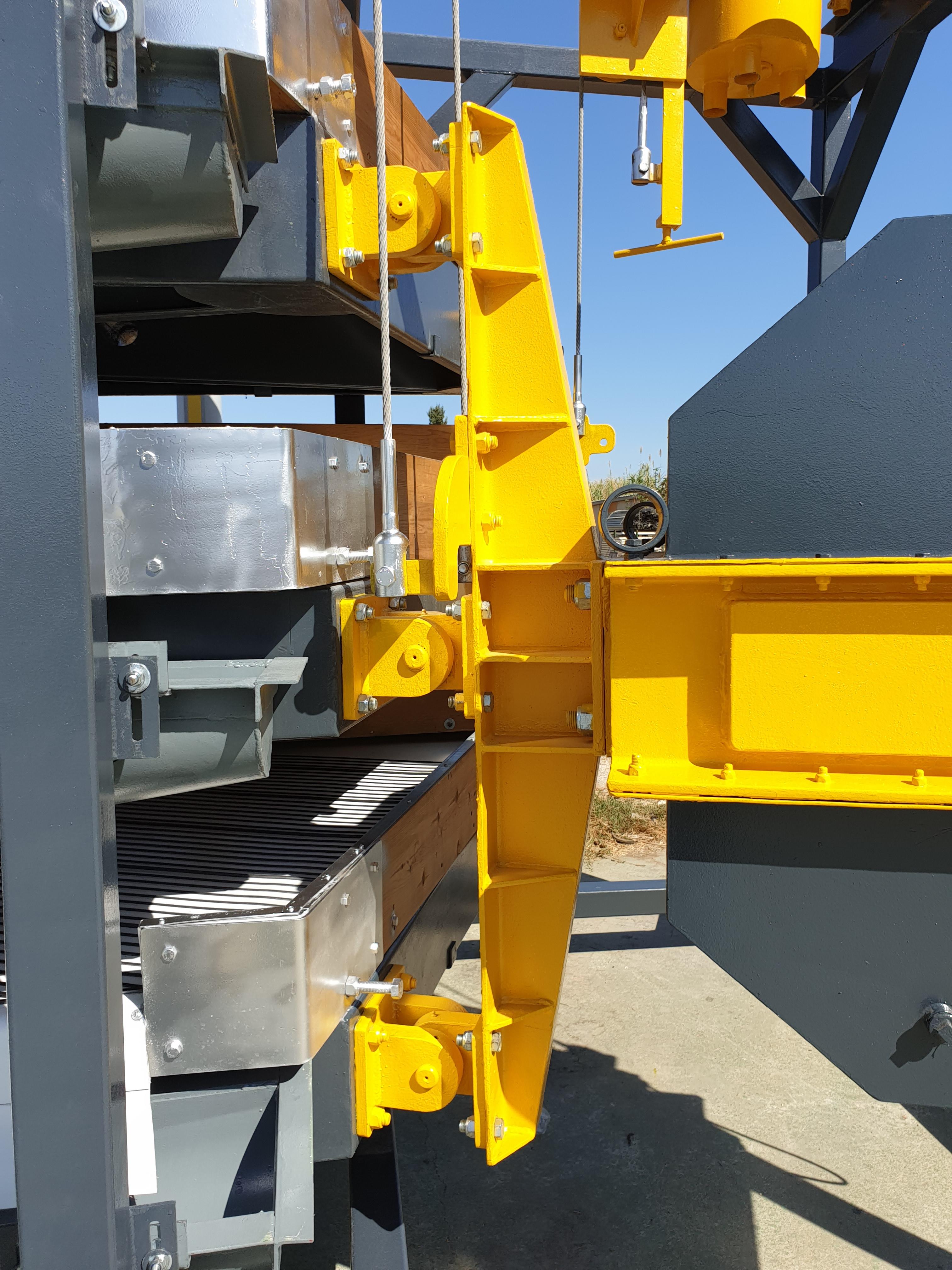

The system operates with a single gearbox that shakes 3 floors simultaneously. A 4kW, 1/940 rpm motor is used on the gearbox. Thanks to this design, high efficiency and energy savings are achieved in production.
The distribution hopper of the tables is capable of feeding 3 tables simultaneously. The table edges have steel discharge channels for waste materials and the obtained ore.
Technical Specifications
| Table Dimensions | 685 x 240 x h320 cm |
|---|---|
| Enrichment Area | 8,5m2 x 3 FLOOR = 25.5m2 |
| Support Main Body | STEEL CONSTRUCTION |
| Ore Sorting Table | STEEL CONSTRUCTION |
| Table Surface | FIBERGLASS |
| Capacity (3-Tier Table) | 1.5-2 tons/hour (between 50 micron-2.00 mm) |
| Engine Power | 4kw/940d |
